Springer Front End - Black and Copper

by Mid USA
SKU 35232
Sold out
Original price $579.99 - Original price $599.99
Original price
5799 ENTRIES 🎟️
$579.99 - $599.99
Current price $579.99
5799 ENTRIES 🎟️

File Upload *

Drag and drop files orBrowse

Supported file types: .jpg, .png, .gif

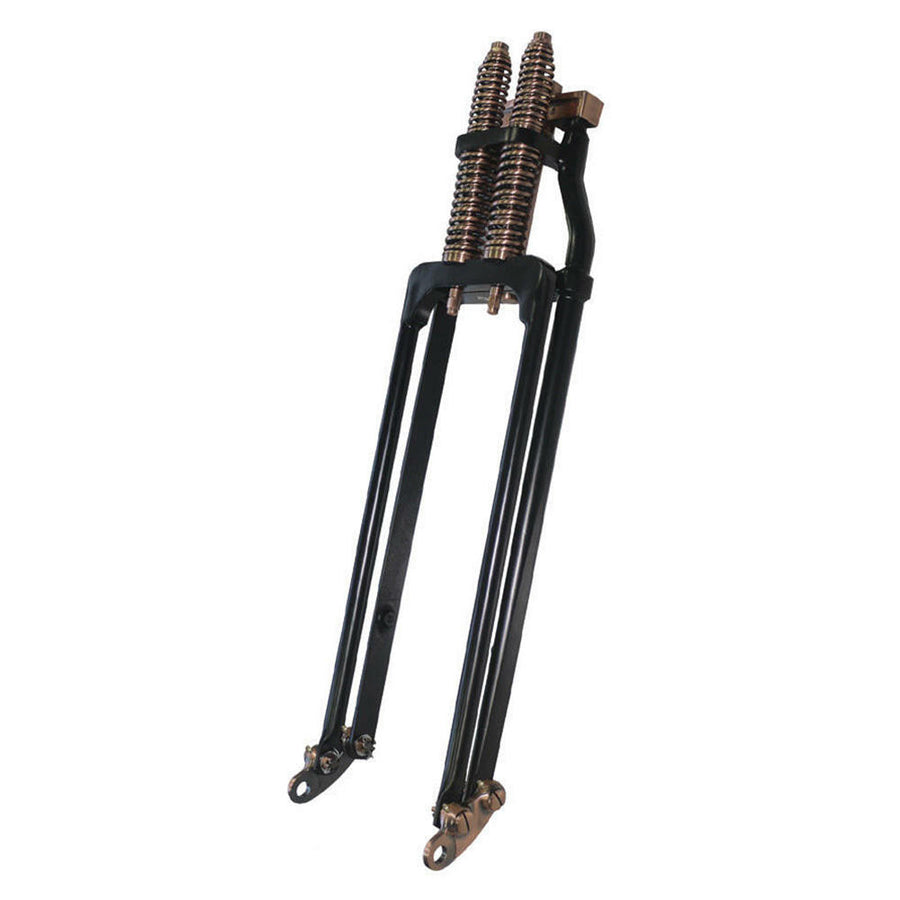

This custom black and copper springer front end for Harley and custom frames will set your ride off and give it that vintage look.

  • one inch front rails on all lengths
  • Fully assembled with a forged in-line top bracket without a built-in rake
  • The standard length springer (24" measured from the bottom bearing to the axle center) is comparable to a standard length FXST front end
  • 1" O.D. steering stem designed for Timken type bearings
  • Both rear legs are threaded for right or left brakes
  • Forged rockers for superior strength
  • Rear legs are 1 piece from the rocker to the top tree
  • Measures 9 1/4" between rockers
  • Riser mounts are on 4 3/4" centers and threaded 1/2-20


  • The 3/4" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)
  • Top Clamp
