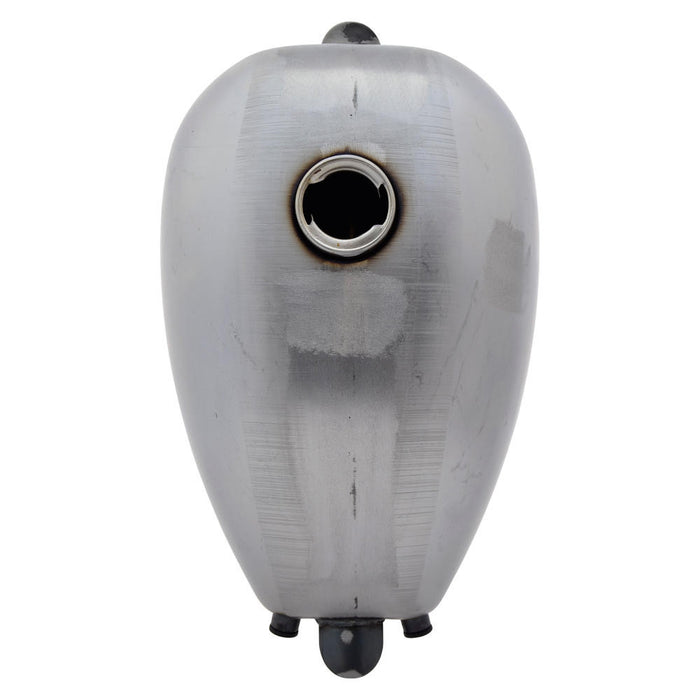

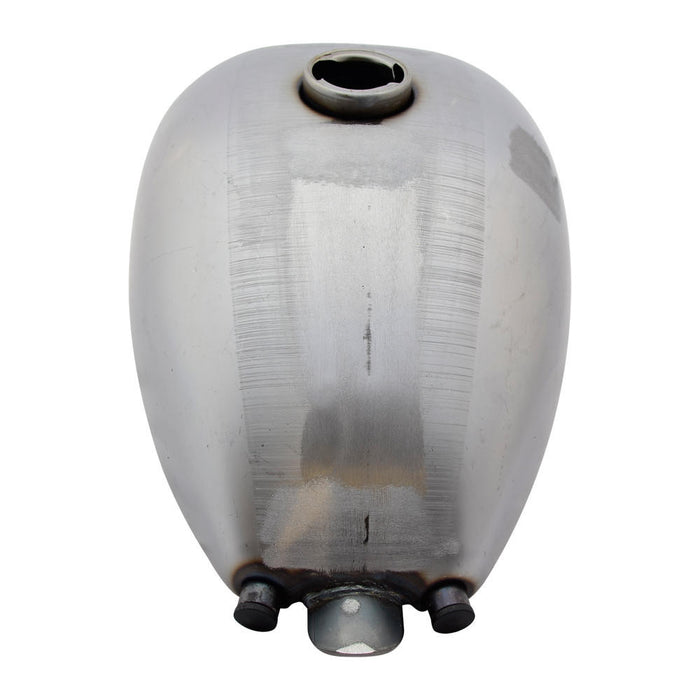

Wassell Peanut Gas Tank - Mid Tunnel

SKU 1035
Original price $179.99 - Original price $179.99
Original price
$179.99
1799 ENTRIES 🎟️
10X
$179.99 - $179.99
Current price $179.99
1799 ENTRIES 🎟️
10X

File Upload *

Drag and drop files orBrowse

Supported file types: .jpg, .png, .gif

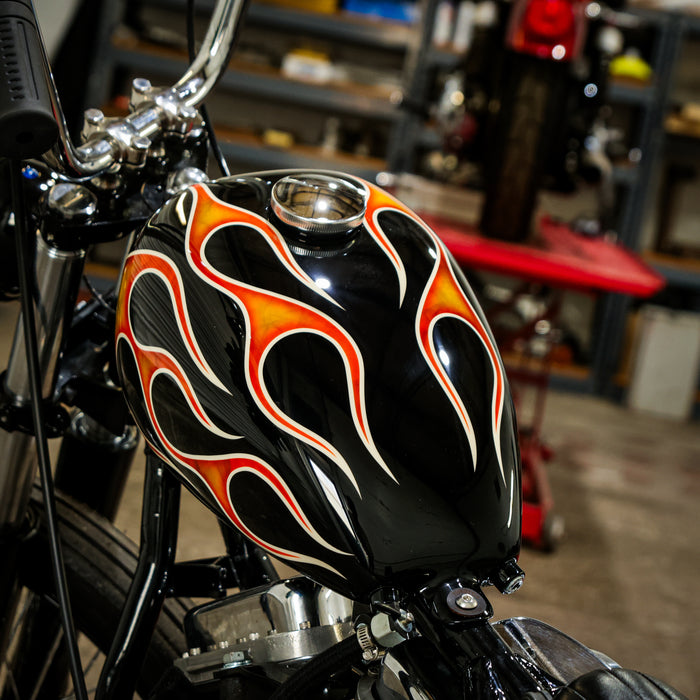

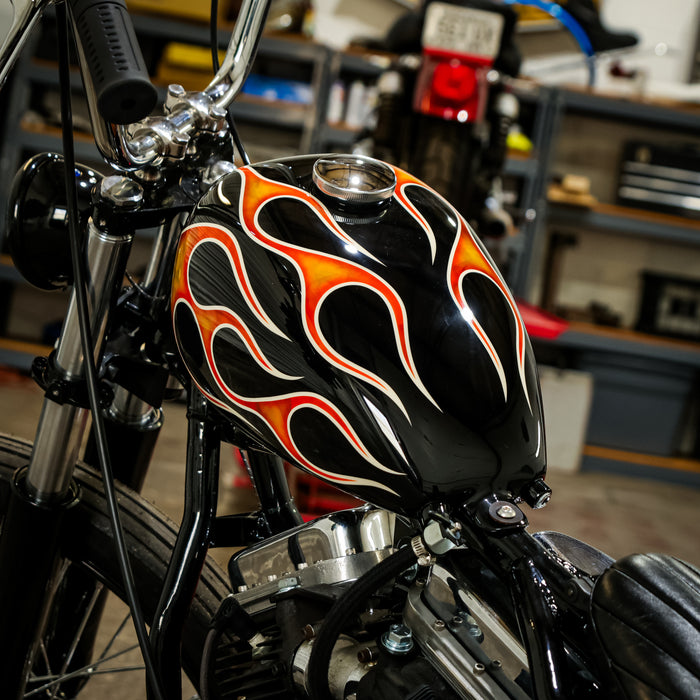

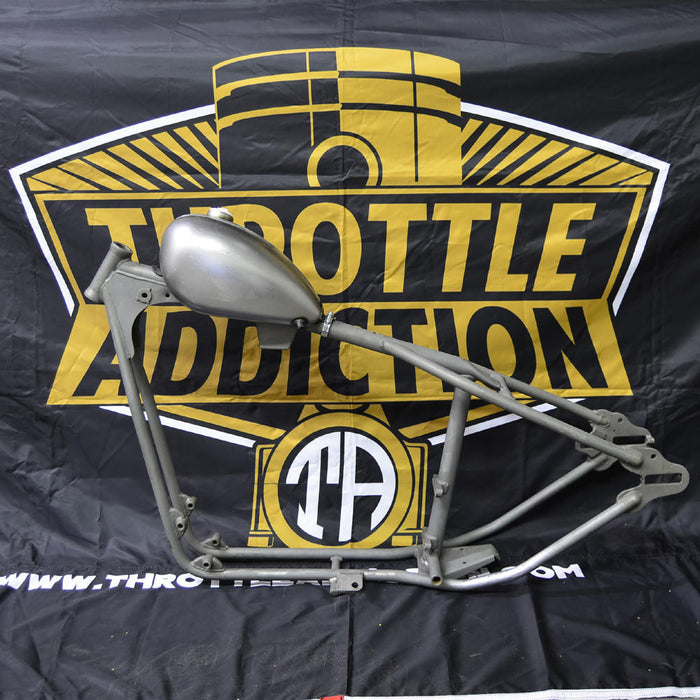

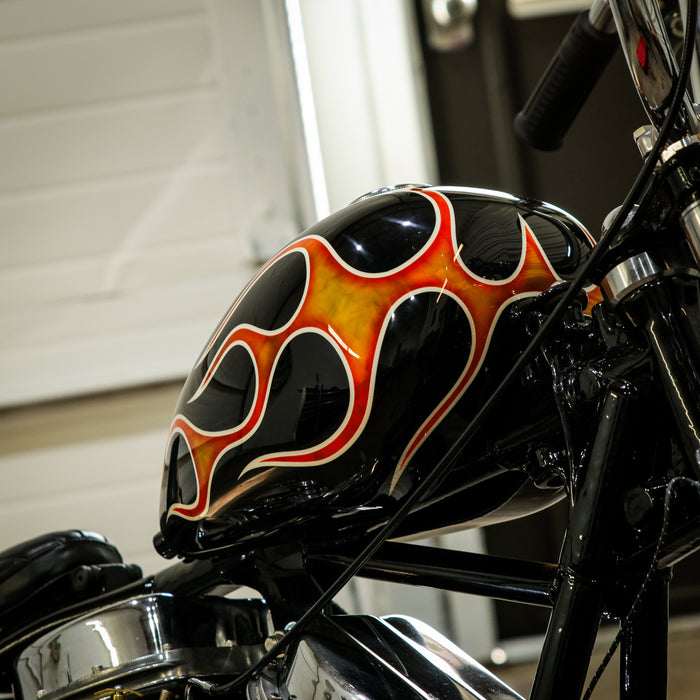

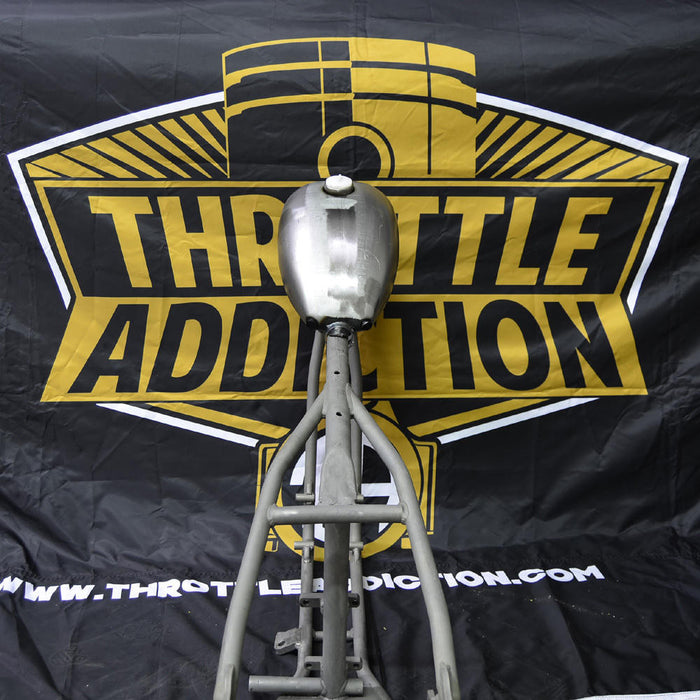

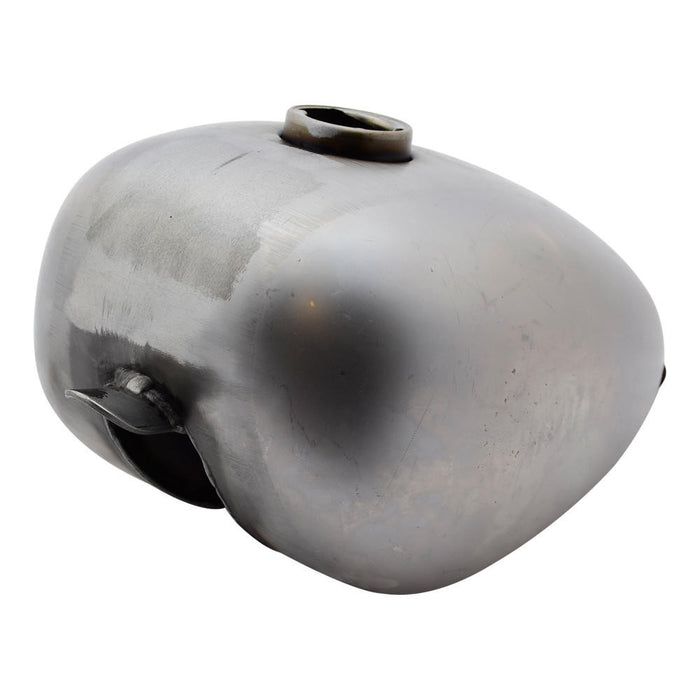

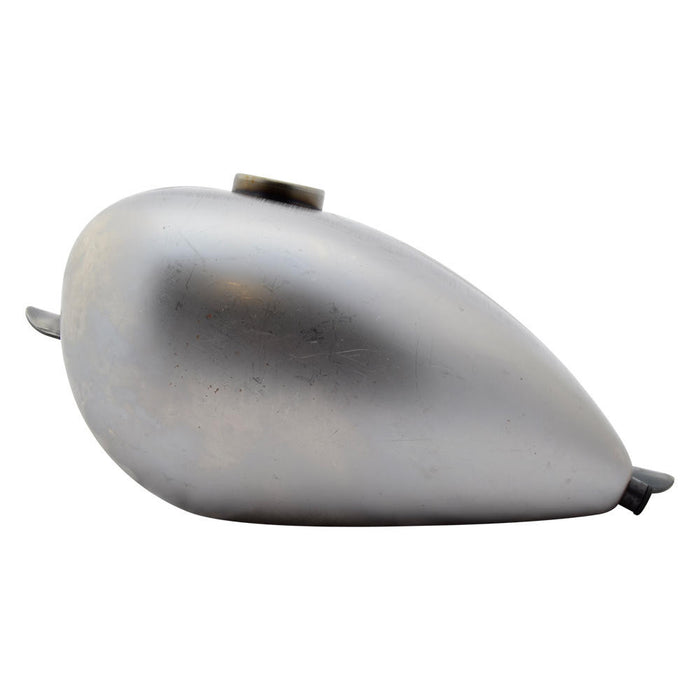

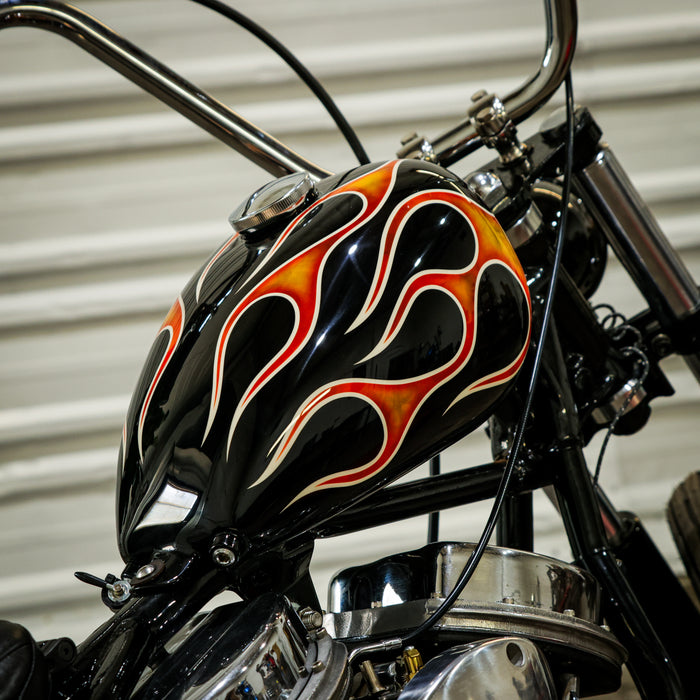

The mid-tunnel Wassell style peanut tank is the happy medium between our Frisco Wassell gas tank and our Deep Tunnel Wassell gas tank.  It’s like the Goldilocks of gas tanks:  not too high, not too deep, it sits just right.  This peanut tank also features our widest tunnel width so it will fit rubber mounted Sportster frames years 2004-2006.  Gas cap sold separately.

Features:

  • Mid-depth tunnel
  • Undrilled mounting tabs
  • Bungs for two 1/4" NPT petcocks
  • Uses vented cam style gas cap - Throttle Addiction part numbers 1010 chrome, 1109 black.
  • Make mounting simple with our USA made Frisco Tank Mount Kit.

 Dimensions:

  • 2.1 gal capacity
  • 14.5" long x 9" wide x 7.5" tall
  • 17" tab to tab
  • 3.5" deep tunnel
  • 2.375" wide tunnel

Disclaimer:
Tanks are pressure tested at the factory, but it is best to test again before you paint it.  Be sure fit of tank, mounting hardware, petcocks and gas caps are true prior to painting.  No stress is applied to the tabs when bolting them to the frame, this can lead to cracking of welds.  If needed, use leather or rubber washes to shim between the tabs and the backbone to ensure an even fit.  Do not sand seams or welded edges of gas tanks, if needed use a thin spread of body filler prior to painting.  Throttle Addiction warranties gas tank defects however we do not cover paint work.  Ensure your tank arrived damage free BEFORE you paint!
