Frisco Wassell Peanut Style Gas Tank

SKU 1043
Original price $199.99 - Original price $199.99
Original price
$199.99
999 ENTRIES 🎟️
5X
$199.99 - $199.99
Current price $199.99
999 ENTRIES 🎟️
5X

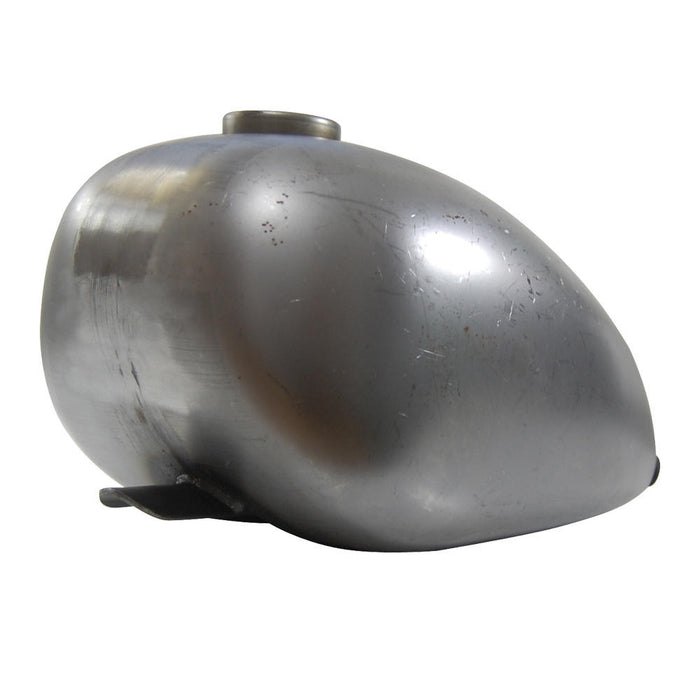

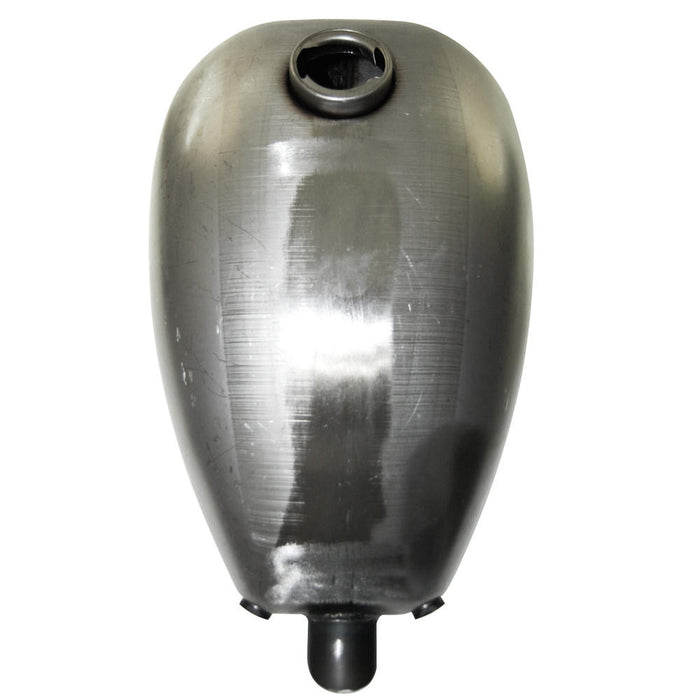

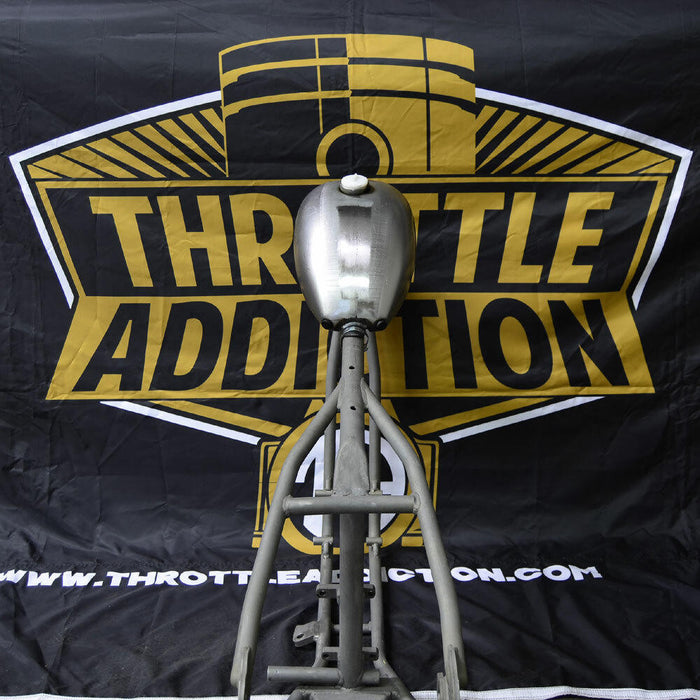

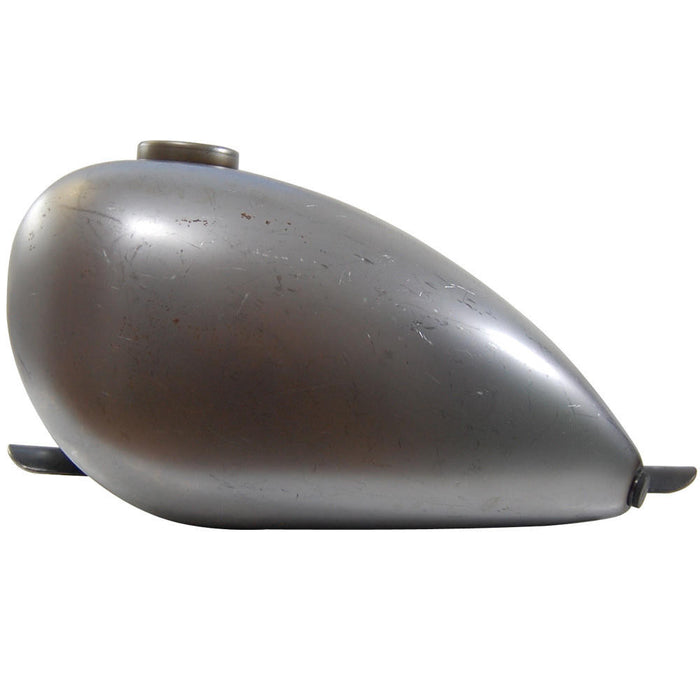

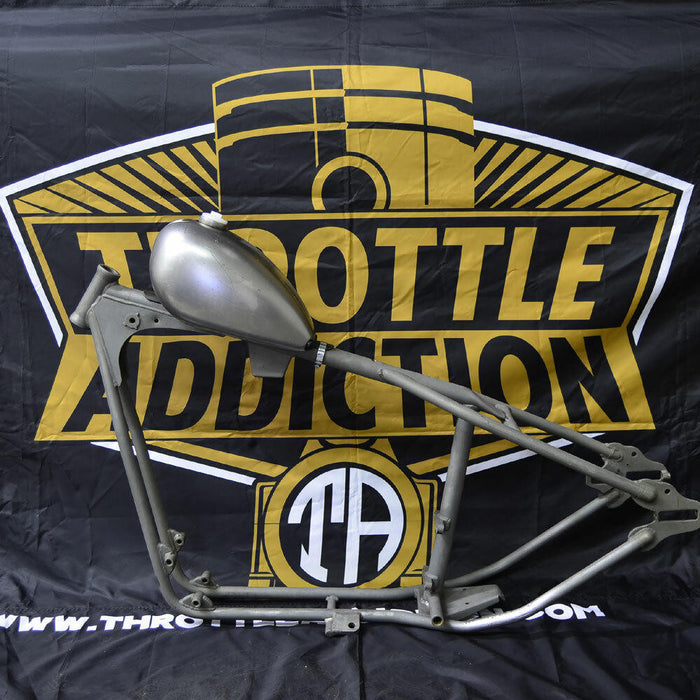

This tank has a classic Wassell shape with a Frisco tunnel.  It sits high and level with your frame backbone.

Features:

  • Undrilled mounting tabs
  • Bungs for two 1/4" NPT petcocks
  • Uses vented cam style gas cap  - Throttle Addiction part numbers 1010 chrome, 1109 black.
  • Make mounting simple with our USA made Frisco Tank Mount Kit.

Measurements:

  • 2.3 gal capacity
  • 14.5" long x 9" wide x 7.5" tall
  • 15.5" tab to tab

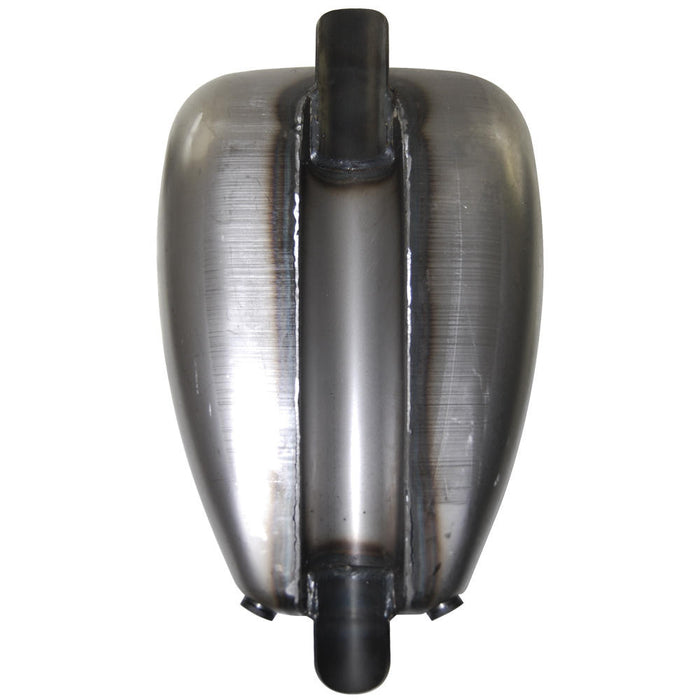

  • 1.125" deep x 2.125" wide tunnel
  • 2.375" wide tunnel

Disclaimer:
Tanks are pressure tested at the factory, but it is best to test again before you paint it.  Be sure fit of tank, mounting hardware, petcocks and gas caps are true prior to painting.  No stress is applied to the tabs when bolting them to the frame, this can lead to cracking of welds.  If needed, use leather or rubber washers to shim between the tabs and the backbone to ensure an even fit.  Do not sand seams or welded edges of gas tanks, if needed use a thin spread of body filler prior to painting.  Throttle Addiction warranties gas tank defects however we do not cover paint work.  Ensure your tank arrived damage free BEFORE you paint!
