simple wiring harness for harley davidson sportster choppers 1986-2003

Evolution Sportster Hardtail Wiring Harness Kit - 1986-2003

15 reviews
by Throttle Addiction
SKU 4077
$0
$259.95 - $259.95
$259.95
2079 ENTRIES 🎟️
8X
$259.95 - $259.95
$259.95
2079 ENTRIES 🎟️
8X
 More payment options

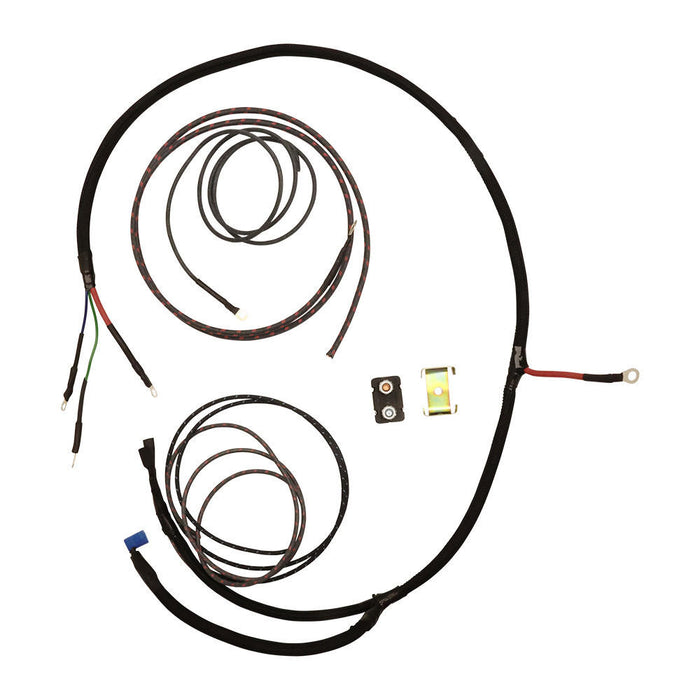

Looking for a simple solution to all your Evo Sportster wiring problems? Designed to work perfectly with our Evolution Sportster hardtail kit, this stripped down chopper harness has you covered.

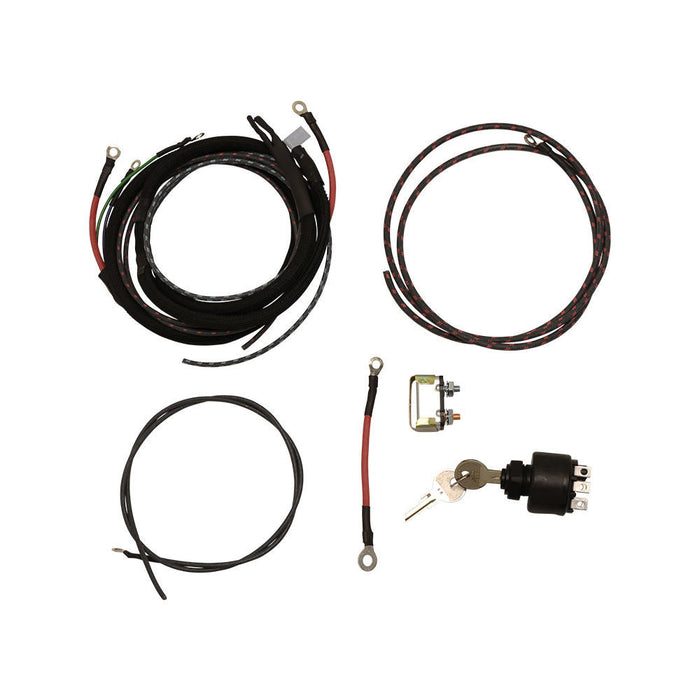

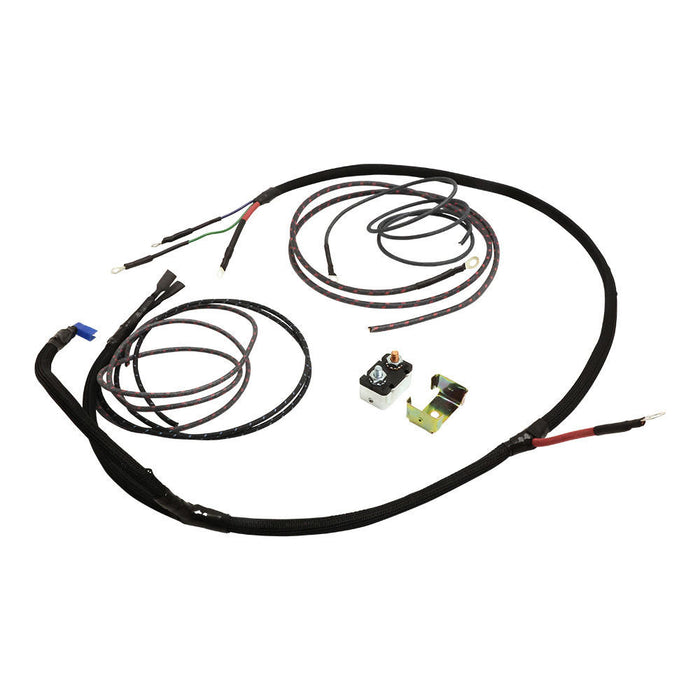

kit Includes;

  • Wiring harness
  • 30Amp circuit breaker

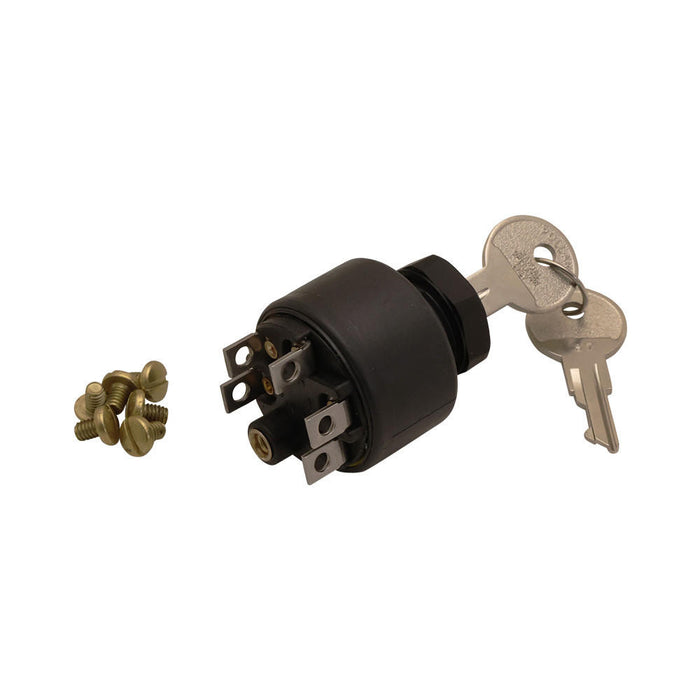

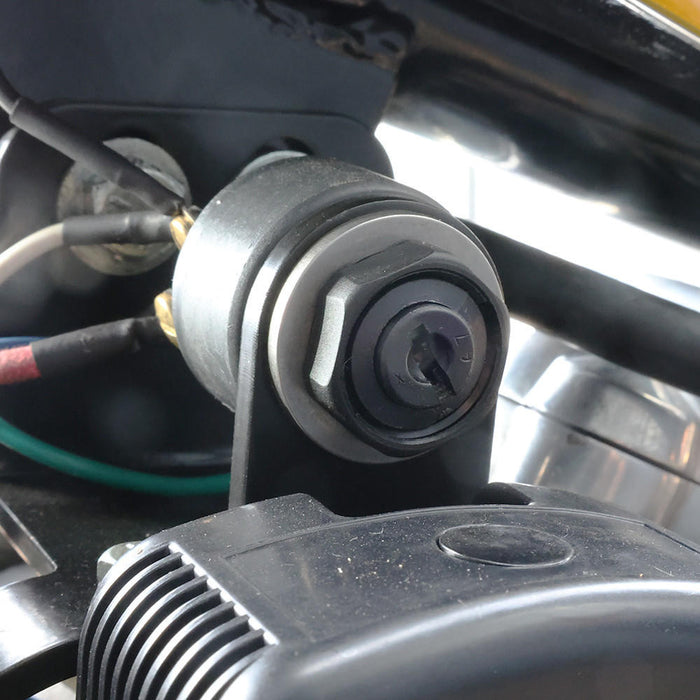

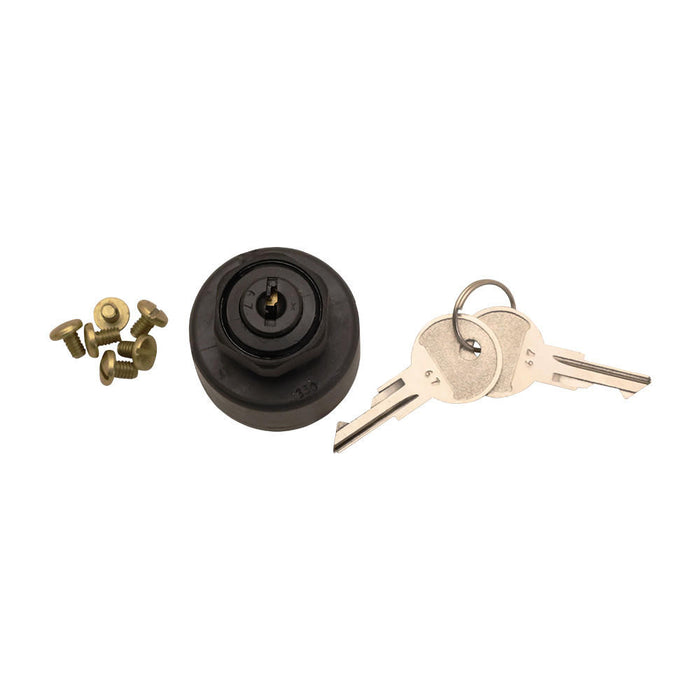

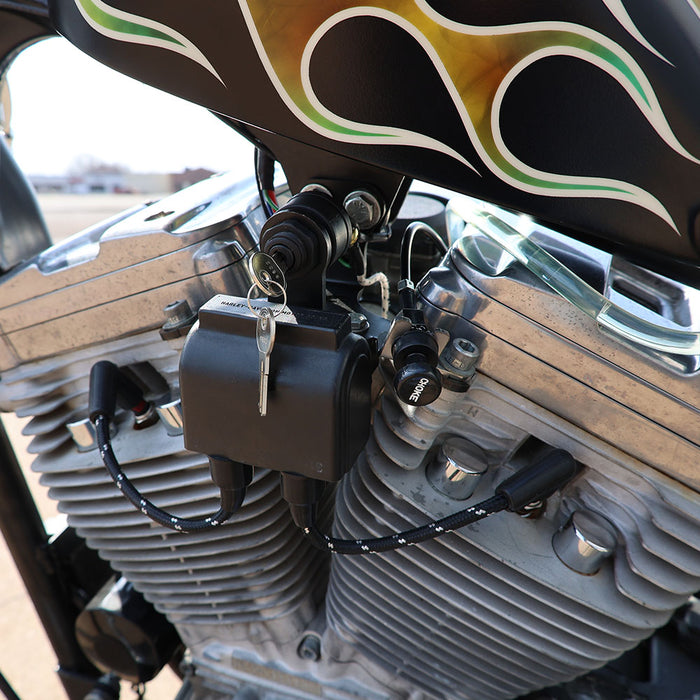

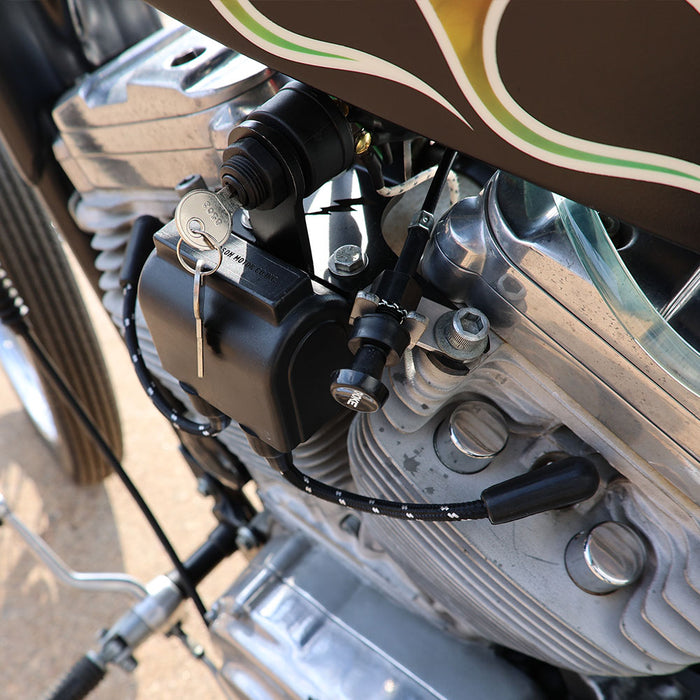

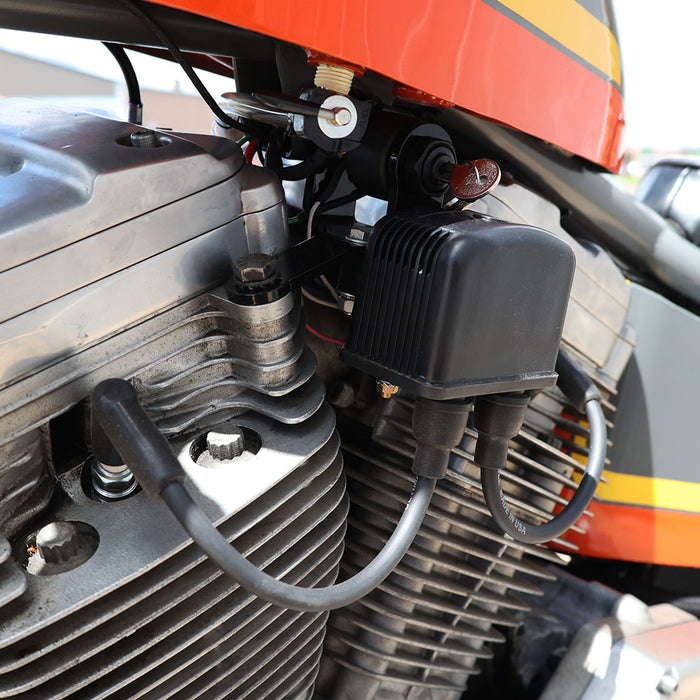

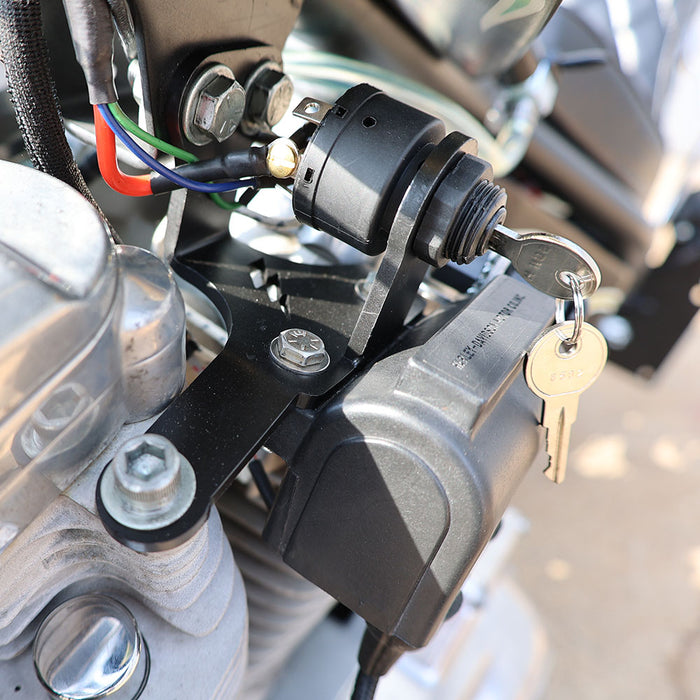

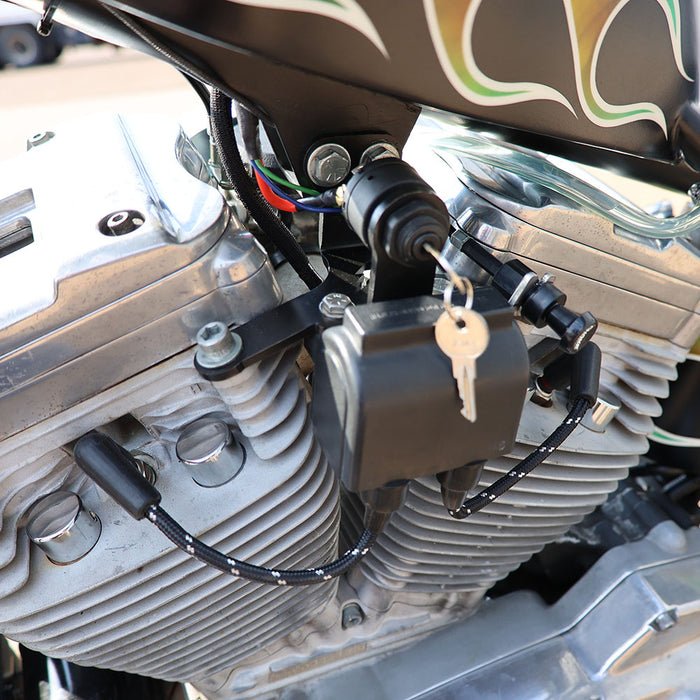

  • Weatherproof keyed ignition/start switch (Intended to be used with 7176 or 7133 motor mount
  • 100% Made in the USA

Includes wiring for:

  • Headlight
  • Taillight
  • Brake light (Intended to be used with 4089 brake light switch)
  • Regulator Rectifier hot wire (reuses OEM RR & Stator)
  • Starter exciter wire
  • Key switch wires

Ignition module, pickup and coil wiring not included. Use Single Fire Ignition kit, or compatible.

Resources:



Customer Reviews
4.8 Based on 15 Reviews
5 ★
87%
13
4 ★
7%
1
3 ★
6%
1
2 ★
0%
0
1 ★
0%
0
Customer Photos
Evolution Sportster Hardtail Wiring Harness Kit - 1986-2003 - Customer Photo From Jose Mirelesi
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
A
10/25/2025
Adam
United States

Nice, but pricey for what it is

It's pretty clean, but the sleeves could be better. The video and wiring diagram are 5 stars for sure. But I thought this kit would at least come with the ignition and coil wires. For the 5 wires this came with, I wish I just watched the video and built out the harness myself. I know the point is to get rid of the sportster wire harness mess, but I could get a whole factory harness for this price. I appreciate the minimalism. Lets me decide if and how I am going to do high beams, turn signals, etc. but the coil wiring is kinda necessary to run the bike. So I'm further away from startup than I expected when I started to wire up this harness. Luckily, I already have everything I need as I was going to attempt a full custom wiring harness anyway.

Share   |   Facebook  •  Twitter
Was this helpful?  0    0
BH
08/04/2025
Bobby H.
United States

Super easy

Super easy to wire up bike was a mess before this now pops right up thank you guys

Share   |   Facebook  •  Twitter
Was this helpful?  0    0
CR
04/12/2025
Cody r.
United States

Simple harness, the video they have is a step by step, you can't mess it up if you follow the video

Share   |   Facebook  •  Twitter
Was this helpful?  0    0
E
04/01/2025
Eduardo SVG verified by SHOP
United States

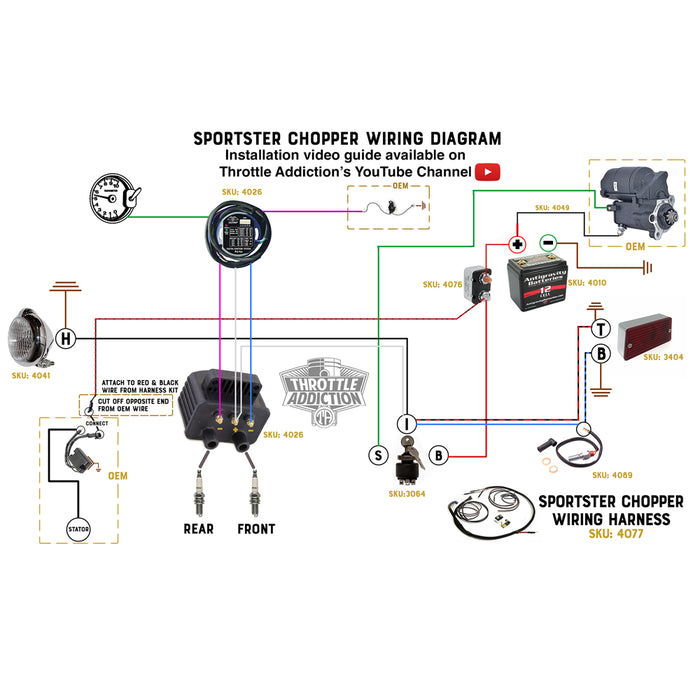

I like this product because it really cleans up all the wiring in a build. Really simplifies everything, along with the video and schematic you cant mess this up. I got lost along the way i was about to send an email for help because i know this company really shows support but i rewatched the video and i got it figured out :) time to solder that ONE connection

Share   |   Facebook  •  Twitter
Was this helpful?  0    0
