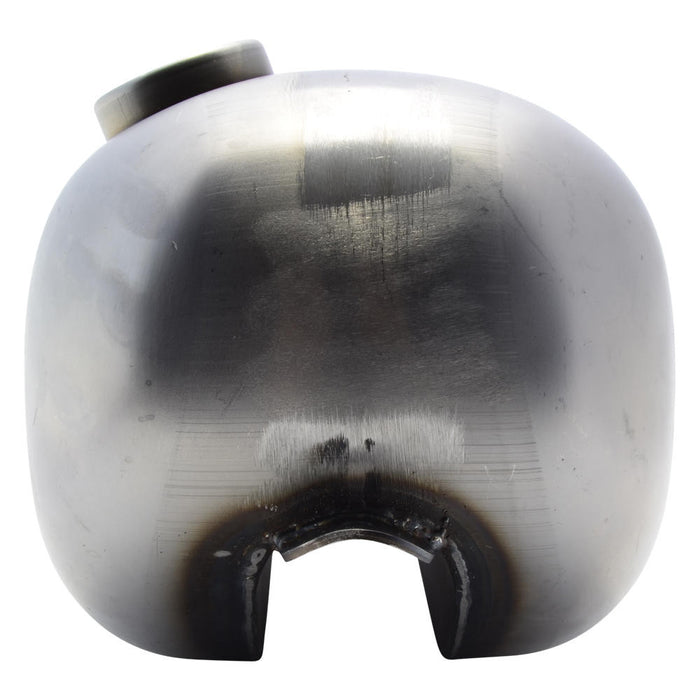

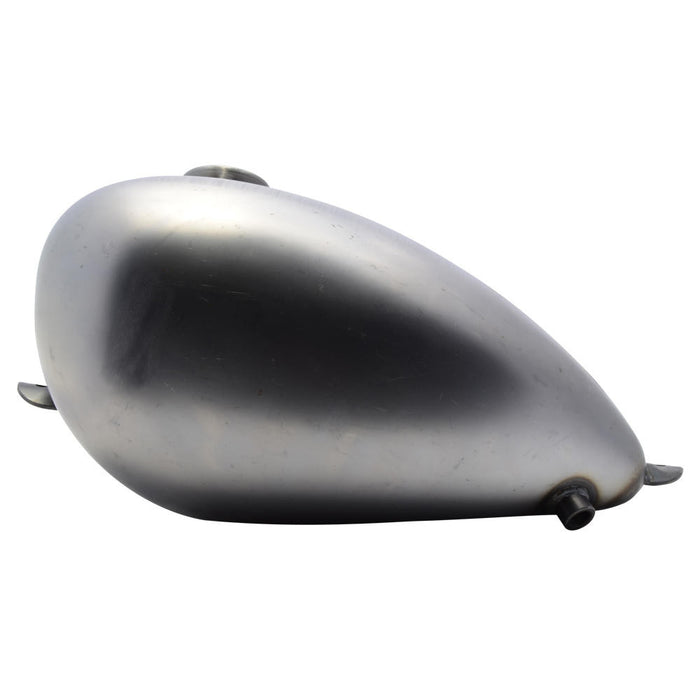

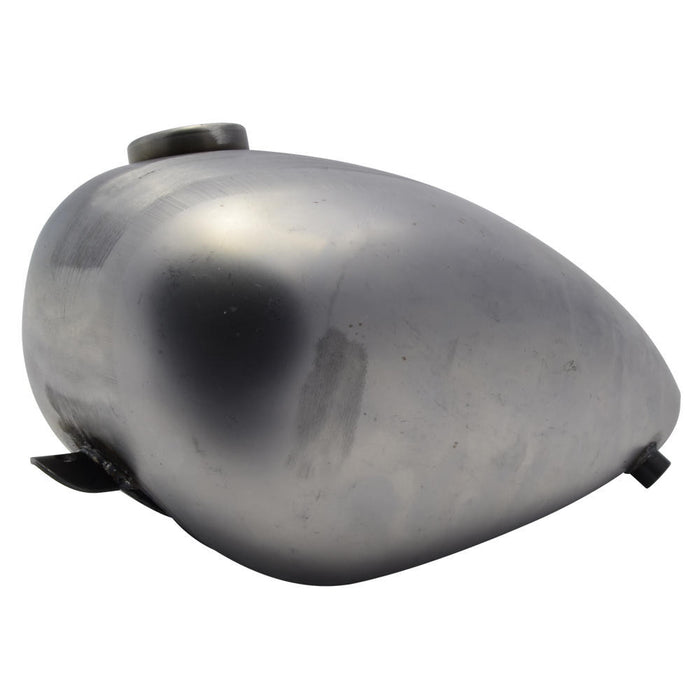

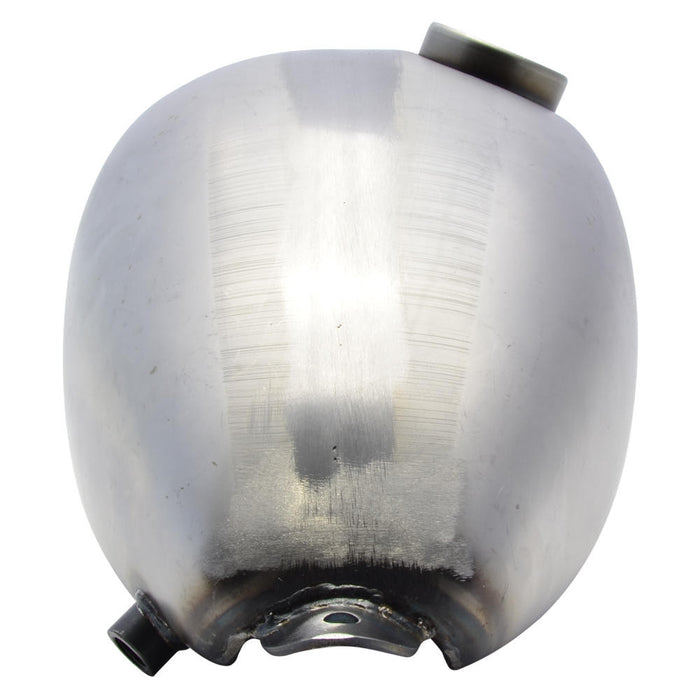

Narrow Wassell Gas Tank

This unique gas tank starts with the same shells we use for our other Wassell inspired gas tanks, then we narrowed it 1” before the halves were welded together.  It’s a unique tank that is perfect for Triumphs, XS 650s or even Sportsters.  At 1.8 gallons, it’s best for the rider whose looking for style, not miles.

Features:

• Low tunnel
• Single 1/4" NPT petcock bung

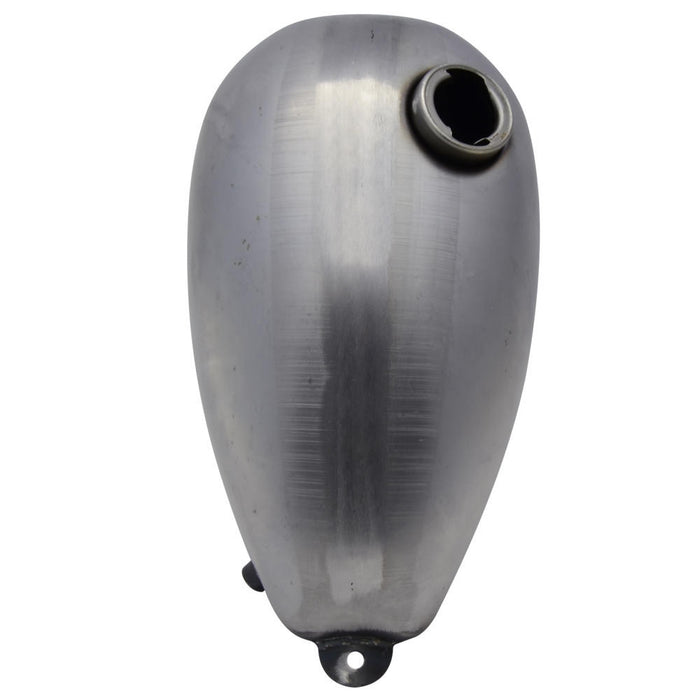

• Harley Davidson cam style filler neck
• Requires HD- vented gas cap
• Make mounting simple with our USA made Frisco Tank Mount Kit.

Dimensions:

• 1.8 gal
• 14.25" long x 8" wide x 7.5" tall
• 15.5" long tab to tab

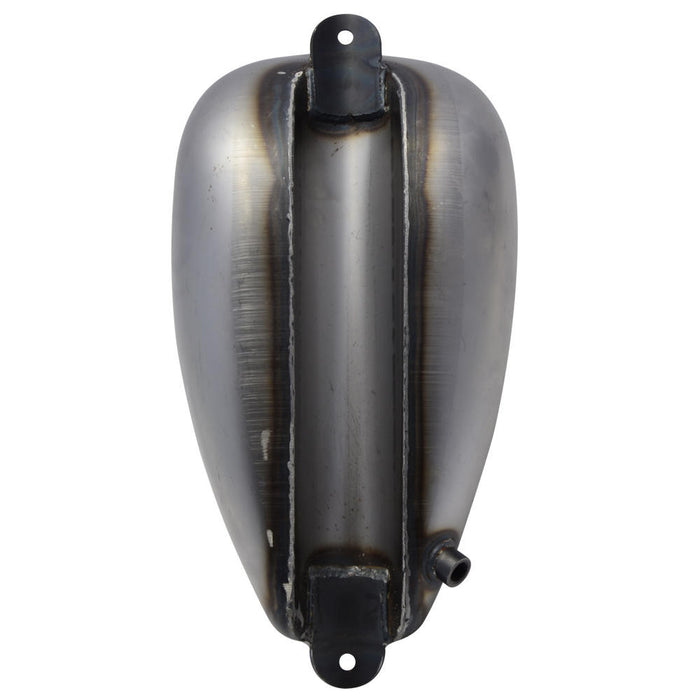

• Tunnel 3" deepest point, 2.25" wide

Disclaimer:
Tanks are pressure tested at the factory, but it is best to test again before you paint it.  Be sure fit of tank, mounting hardware, petcocks and gas caps are true prior to painting.  No stress is applied to the tabs when bolting them to the frame, this can lead to cracking of welds.  If needed, use leather or rubber washes to shim between the tabs and the backbone to ensure an even fit.  Do not sand seams or welded edges of gas tanks, if needed use a thin spread of body filler prior to painting.  Throttle Addiction warranties gas tank defects however we do not cover paint work.  Ensure your tank arrived damage free BEFORE you paint!
