Narrow Vintage Harley Big Twin Style Springer Front End - Chrome

Narrow Vintage Harley Big Twin Style Springer Front End - Chrome

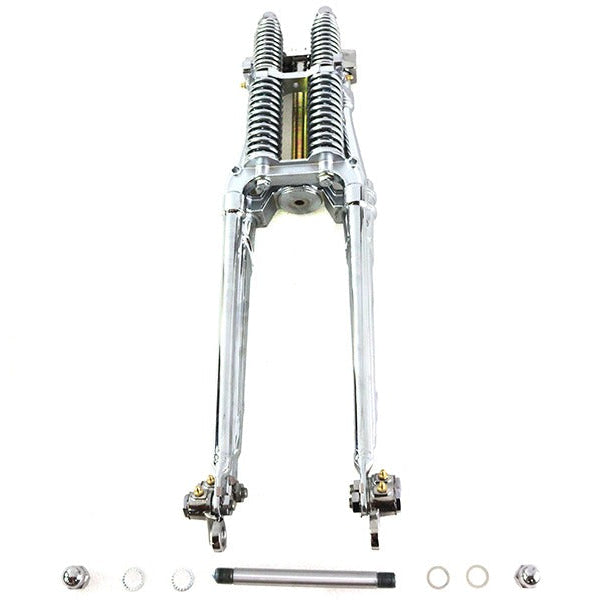

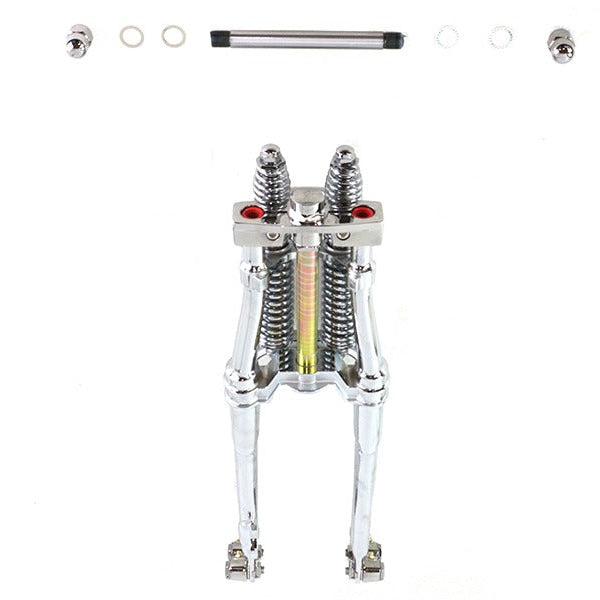

Narrow Vintage style springer front end, replicated after the Harley Davidson Big Twin springer incorporating modern upgrades but 2 3/4" narrower. This springer will accept original Spring Fork components, headlamp bracket, shock assembly or ride control.  Includes chrome top clamp and 3/4" axle kit.

Features:

• Fully assembled with in-line top clamp – 0 degree rake

• 1” O.D. steering stem designed for modern Timken type bearings.

• Measures 6" between the cast axle rockers

• Includes ¾" O.D. axle
• Rise mounts are 4 ¾” centers and threaded for ½"-20 studs
• Universal brake rod mount on right rear leg.
• Grease zerk fittings on lower rockers and springs
• Brilliant chrome plating
• Offset left side rocker

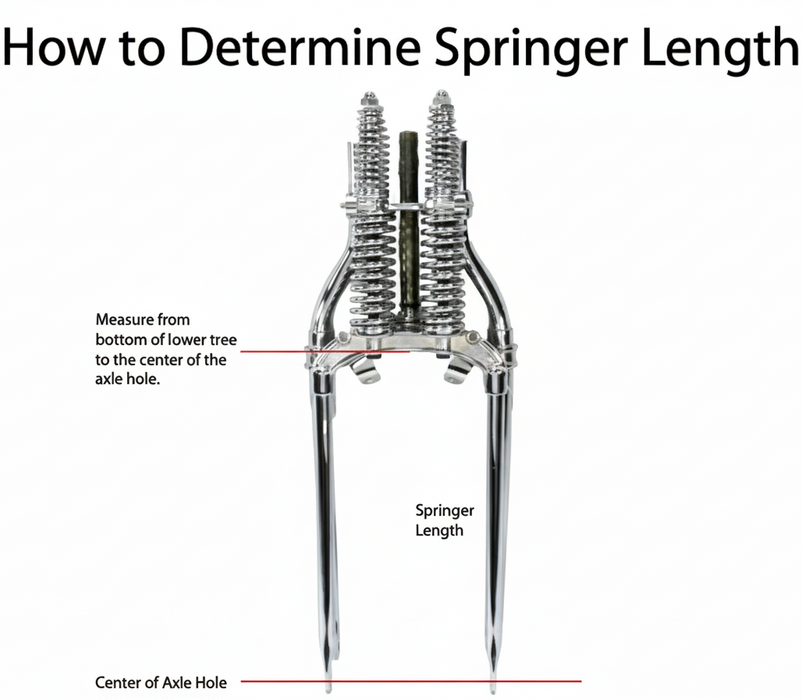

Available lengths: (measured from bottom of lower tree to the center of axle)

• 18"
• 20"  (comparable to Vintage Harley Davidson FL forks)
• 22"
• 24" (comparable to modern Harley Davidson FXST forks)
• 26"
• 28"

Find information on fitment, choosing the correct length, additional parts and installation, HERE.
